Machine Type:
Filling Pumps

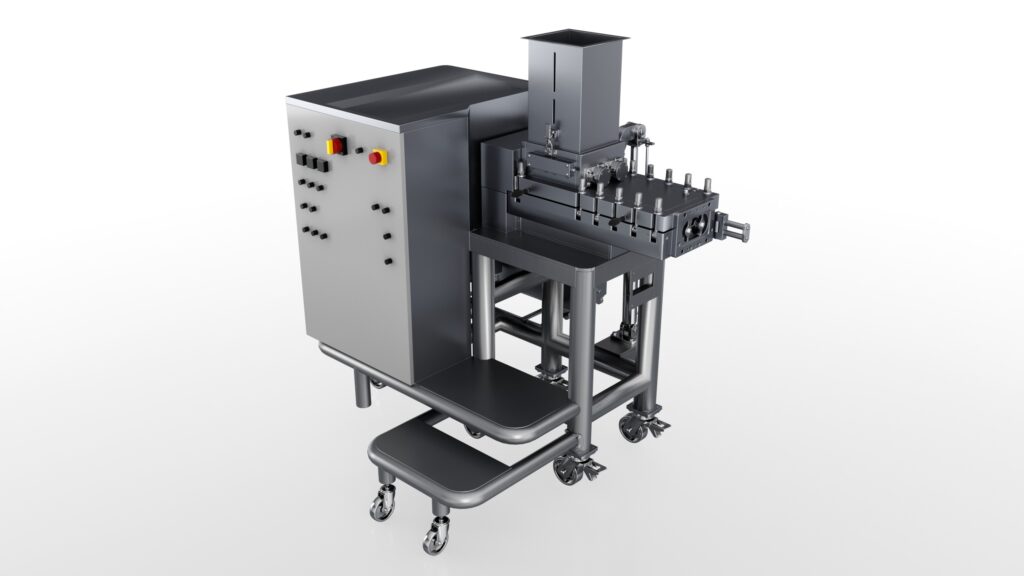

The 040ES extruder is designed to uniformly and continuously process chewing gum, bubble gum, or chewy-toffee, feeding cut & wrap machines or soft-mass forming lines. It can also be used as a standalone extruder for either chewy or gum production.

Main features

• Heavy-duty painted steel frame
• AISI 420 stainless steel hopper for product loading, 50-liter capacity
• Two feeding rollers designed to optimize mass feeding and minimize the bridging effect
• Two Ø 100 mm stainless steel extrusion screws, clutch-connected to the gearbox, easily removable for cleaning
• Removable extrusion die head for fast cleaning operations
• Double-jacketed extrusion chamber heated by thermostatically controlled warm water (energy-saving system)
• Extrusion die head heated by electric resistors
• Hardened gear reduction unit with shafts on spherical bearings
• Gears and bearings housed in an oil bath box with level indicator
• Installed power: 11 kW A/C (variable frequency drive)
• Output: up to 600 kg/h

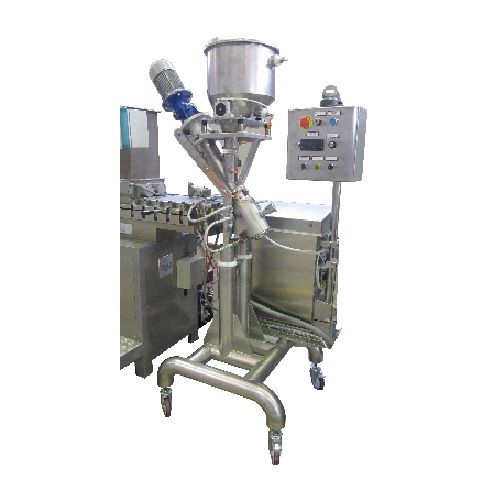

Powder pump applied in the production of chewy candies or gums for the application of powder or granular fillings. Equipped with a wheeled trolley and head to be connected to the extruder outlet.

Applied in the production of hard candies filled with sparkling powder or granular fillings.

Main features

• AISI 304 stainless steel hopper
• Vibrating unit for consistent powder flow
• Feeding screw in AISI 304 stainless steel with Teflon-coated pipe
• Bottom discharge for fast product changeover
• Connection to batch rollers with included accessories
• A/C drive with an inverter for speed adjustment
• Carrier included for easy movement
• Output: 50–200 kg/h, depending on product type and screw size

Theoretical output (specific gravity 0.68 kg/dm³)

• Screw Ø 20 mm = 8–52 kg/h
• Screw Ø 25 mm = 15–96 kg/h
• Screw Ø 30 mm = 23–150 kg/h
• Screw Ø 35 mm = 33–216 kg/h

Designed for hard candies filled with sparkling powder or other granular fillings. Feeding screw in AISI 304 stainless steel with teflon-coated filling pipe. Different screw sizes are available with different diameter depending on the required output.

Output: 50-200 kg/h, depending on powder type.

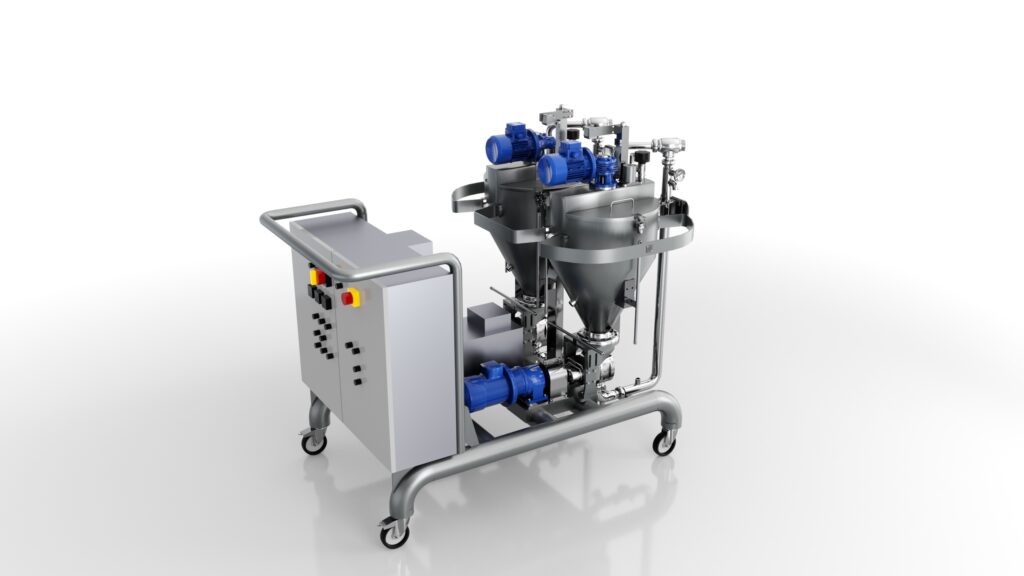

For the production of hard and soft candies filled with liquid, viscous, or thick fillings.

Products that can be pumped include chocolate, flavored syrups, jams, marmalade, honey, fruit syrups, and fat-based creams.

Main features

• Dual pump head suitable for combined liquid or viscous fillings
• In-built product mixer with scrapers for fat-based masses
• Flexible pipe for connection to the filling tube in the batch roller or extruder die head included
• Filling tubes in AISI 304 stainless steel, teflon-coated

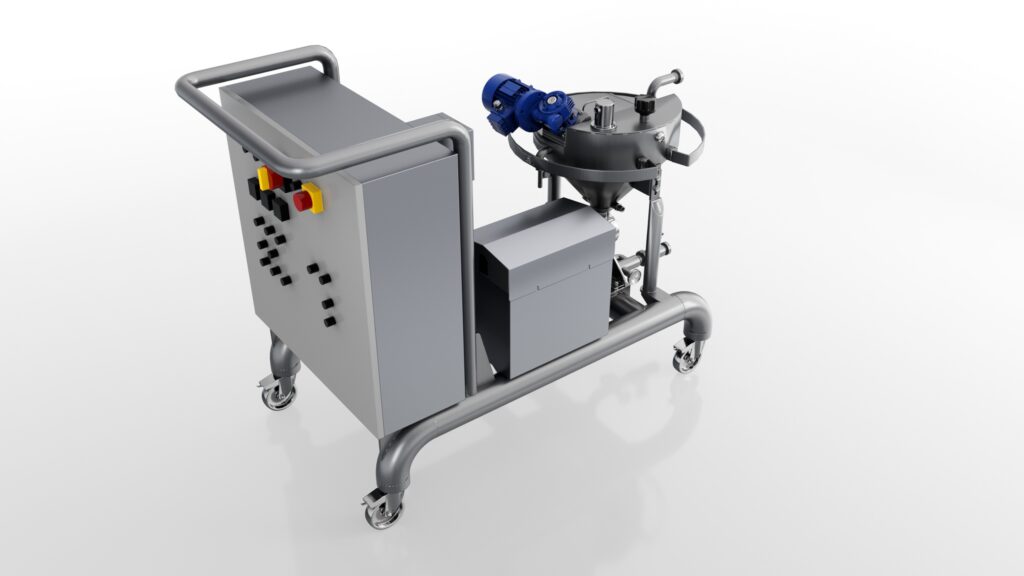

Designed for use with liquid and viscous fillings, such as chocolate cream, in laboratory batch rollers.

• Output: up to 20 kg/hour
• Gear-type pump with Kevlar mechanical seal
• Variable speed by frequency drive
• Flexible pipe and stainless steel Teflon-coated pipe included for batch roller or extruder connection

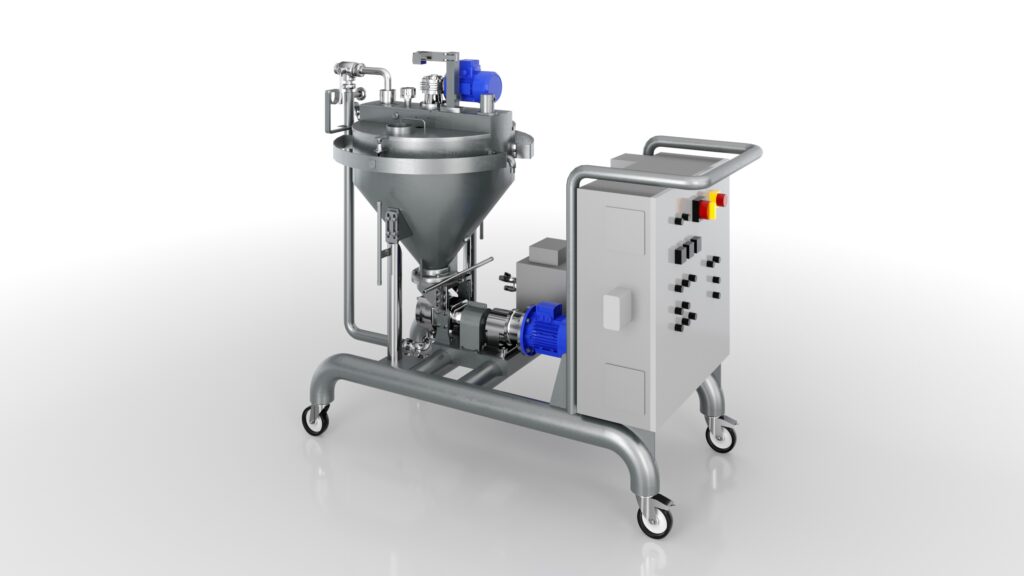

Applied in the production of hard and soft candies, chewing gum, and bubble gum filled.

Products that can be pumped include chocolate, flavored sugar syrups, fruit jams, marmalade, honey, fruit syrups, and fat-based creams.

• Speed synchronization with the forming machine and/or extruder

Flexible pipe and stainless steel Teflon-coated pipe included for batch roller or extruder connection
