Batch Rollers
A batch roller is a specialized machine designed to collect and shape sugar masses during the production of confectionery products. Its primary function is to transform a cooked sugar batch into a uniform, elongated rope that can then be processed into candies or similar products.
The machine operates by continuously rolling and shaping the sugar mass between a set of stainless steel cones, which rotate at adjustable speeds to achieve the desired consistency and shape. Depending on the model, the batch roller can handle different types of sugar masses, including high- and low-boiled sugars, caramel, toffee and can accommodate various capacities, from small laboratory batches to large-scale industrial production.
Heating elements, often positioned at the bottom and sides of the machine, maintain the correct working temperature, preventing premature cooling and ensuring the sugar remains pliable during shaping. Additional features, such as adjustable cone speed, hydraulic lifting systems, and precise temperature control, provide flexibility and consistency, allowing operators to produce high-quality results batch after batch.
Our Models

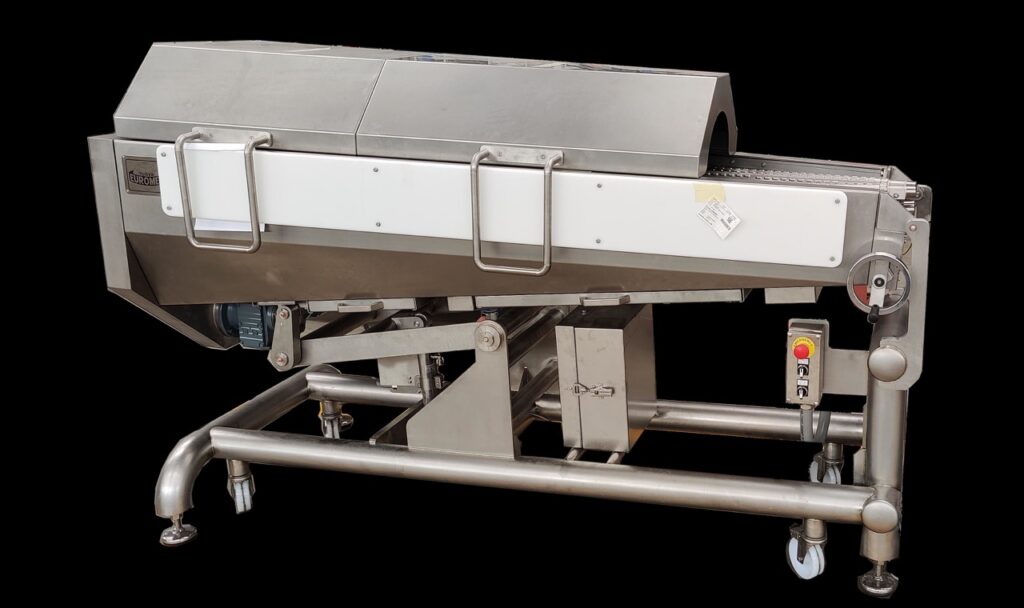

257RL Batch roller
Designed to collect and shape both high- and low-boiled sugar, this machine is ideal for handling large volumes of product mass, ensuring extremely high output. It is also suitable for processing multiple-color batches, providing maximum flexibility for confectionery production.
Constructed with a full AISI 304 stainless steel tubular frame, it guarantees strength, durability, and compliance with the highest hygiene standards. The system is equipped with four AISI 304 stainless steel radial cones, specifically designed to ensure superior shaping of the sugar mass.
The machine features a batch roller lifting drive for smooth and controlled operation, while electric heaters positioned on the bottom and sides deliver uniform heat distribution, maintaining the optimal working temperature throughout the process.
The rotation speed of the stainless steel cones is fully adjustable via an inverter drive, giving operators precise control for consistent results.
This model offers a real loading capacity of approximately 130 kg per batch, with a theoretical maximum capacity of up to 150 kg per batch. The outlet rope diameter ranges from 40 mm to 80 mm, depending on the type of sugar mass processed.
119RLB Batch roller
Specifically designed for small-scale laboratory production, this machine combines practicality, precision, and ease of use.
Built on a tubular stainless steel frame with wheels, it ensures durability and easy mobility within the workspace. The system is equipped with five cones featuring adjustable rotation speed, allowing precise shaping of the sugar mass for testing and small-batch operations.
A hand-wheel enables manual inclination, providing additional flexibility during processing, while a speed variator controls the batch roller cone rotation, ensuring optimal shaping and consistency.
With a capacity of 20 kg, this unit is ideal for experimental production, product development, and small-scale runs without compromising quality or performance.

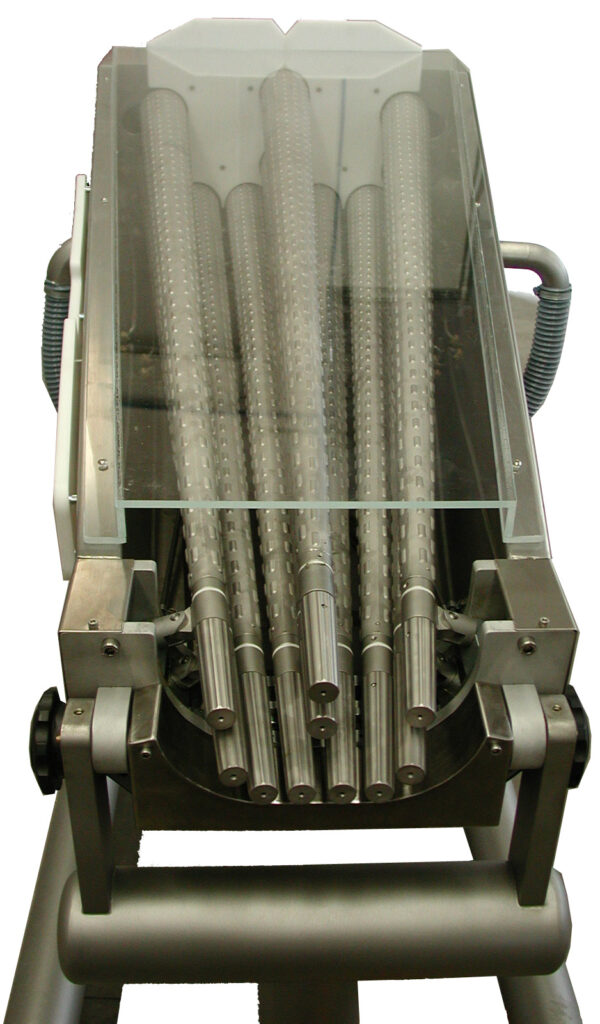

149RL Batch roller
Designed to collect and shape two different colored and flavored sugar masses simultaneously, this machine ensures precision, consistency, and high-quality results.
Constructed with a full stainless steel frame for maximum durability and hygiene, it incorporates AISI 304 stainless steel radial cones positioned in two locations to guarantee optimal shaping of both sugar masses.
Equipped with a batch roller lifting drive for smooth and controlled operation, the system features electric heaters on the bottom and sides for uniform heat distribution. An electronic thermal switch allows accurate temperature adjustment to maintain ideal processing conditions.
The rotation speed of the stainless steel cones is fully adjustable via inverter drive, offering complete control over the shaping process.
The machine provides a real working capacity of approximately 25 + 25 kg per cycle.

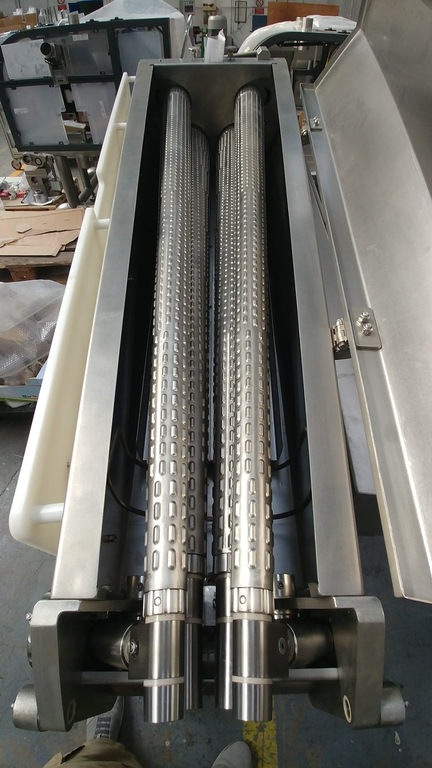

224RL Batch roller
Engineered to collect and shape both high- and low-boiled sugar, this machine guarantees precision and efficiency in every step of the process.
Built with a full AISI 304 stainless steel tubular frame, it ensures maximum strength, hygiene, and long-term reliability. The system is equipped with four AISI 304 stainless steel radial cones, specifically designed to deliver superior shaping of the sugar mass.
The batch roller lifting drive operates through a hydraulic system, ensuring smooth and controlled movement. Heating is provided by electric heaters positioned at the bottom of the batch roller, ensuring even heat distribution during processing.
The rotation speed of the stainless steel cones is fully adjustable via inverter drive, giving operators precise control for optimal results.
The machine features a batch capacity of 90 kg, with an outlet rope diameter of up to 80 mm, depending on the type of sugar mass processed.

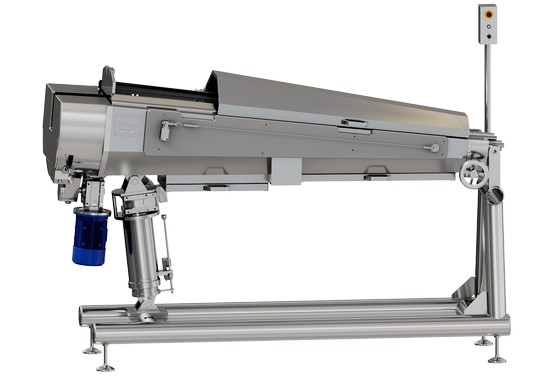

007RLF Batch roller
This machine is designed to collect and shape both high- and low-boiled sugar with maximum efficiency and precision.
Built with a robust AISI 304 stainless steel tubular frame, it ensures durability, hygiene, and long-lasting performance. The system features six AISI 304 stainless steel radial cones, engineered to deliver optimal shaping of the sugar mass.
A batch roller lifting drive allows smooth and precise handling, while electric heaters positioned at the bottom and sides guarantee even heat distribution for consistent processing.
The rotation speed of the stainless steel cones is fully adjustable via an inverter drive, giving operators complete control over the shaping process.
The machine offers a real loading capacity of approximately 90 kg per batch, with a theoretical maximum of up to 120 kg per batch. The outlet rope diameter ranges from 40 mm to 80 mm, depending on the type of sugar mass.
