258LAB – Low capacity production line for laboratories

Nuova Euromec 258 “mini line” was designed to meet the demands of companies wanting to test new types of masses, fillings, and their combinations. This allows for a high degree of flexibility and innovation in product development.

It enables marketing teams and decision makers within the company to quickly create various product prototypes before deciding whether to launch them in the market. This can significantly speed up the product development cycle.

Characteristics:

Structure made of AISI 304 stainless steel
Mobile with wheels;
Lower tank for containing water used in cleaning phases;
Diathermic oil control units for managing the temperature of the extruder and filling pump, and for cleaning them.

QUICK FACTS

Application

Chewy candy

Hard candy

Bubble gum

Chewing gum

PRODUCTION SPEED

2-5 kg/h PCS/MIN

Filling Options

Liquid

Color Option

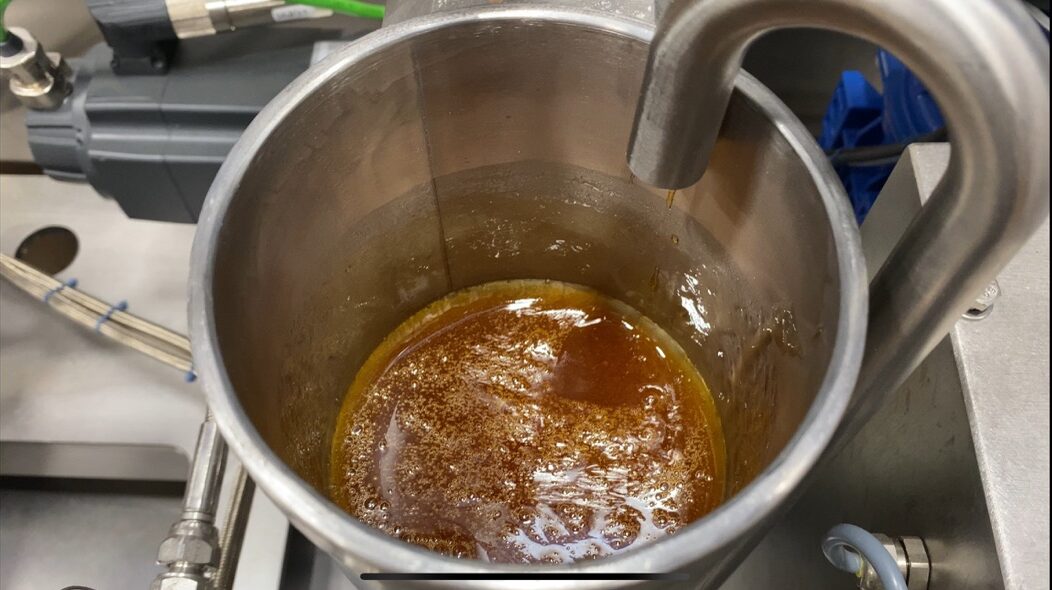

Filling Pump Unit

Suitable for liquid, viscous, and dense fillings;
Capable of pumping products such as chocolate, flavored sugar syrups, fruit pulp preserves, jams, honey syrup, honey, fruit syrups, and fat-based creams;
Product loading hopper made of AISI 304 stainless steel.

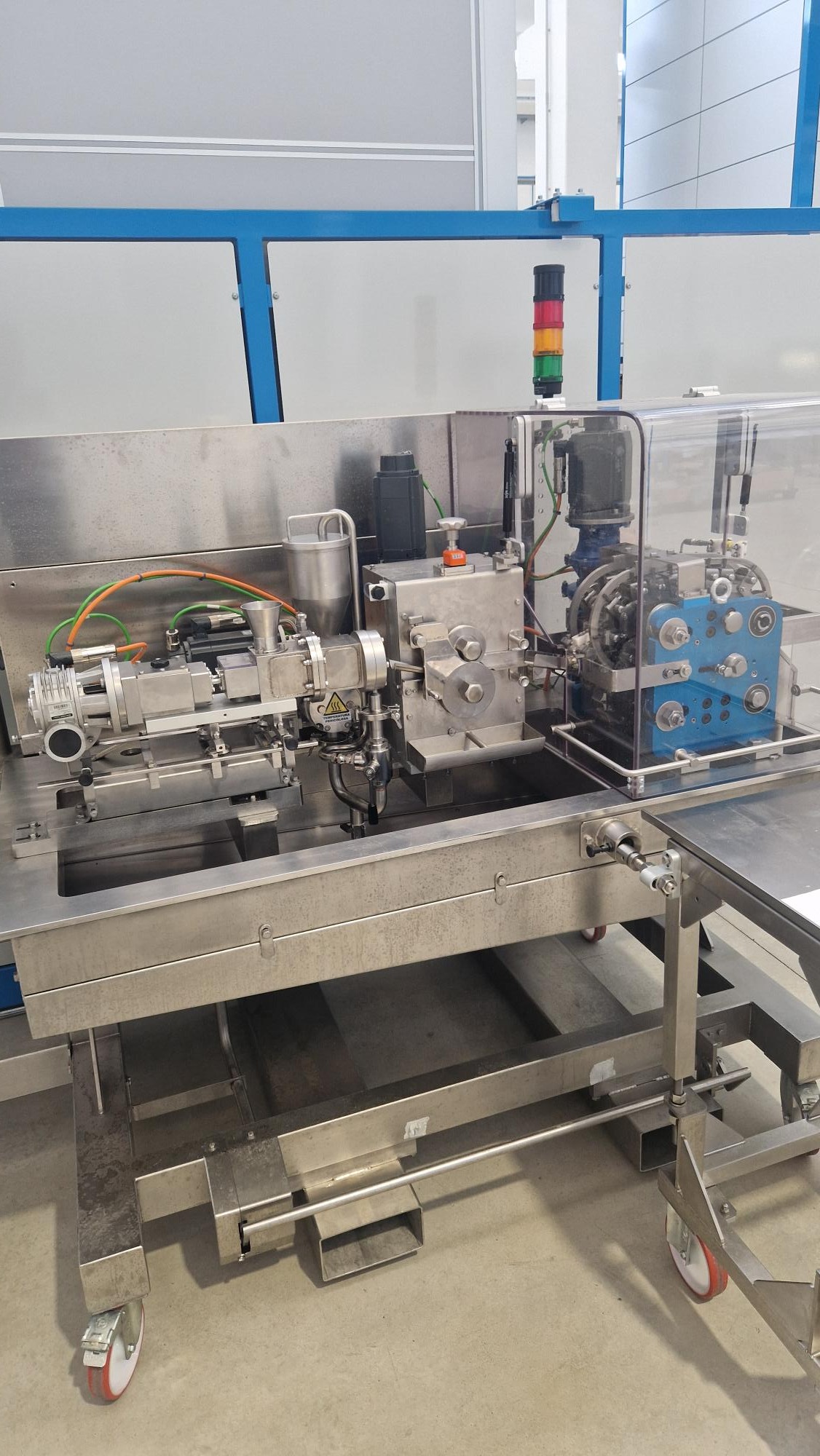

Machine stages

Extruder:

Allows for uniform extrusion of gum and chewy masses;
Two counter-rotating extrusion augers connected to the gearbox;
Double-skinned extrusion chamber heated by water/oil, controlled by a thermostat.

Set of Sizing-Forming Rollers:

Modular construction with one pair of smoothing rollers with variable opening and speed;
Adjustable independently with a servo drive.

Molding Forming Section:

Structure designed to house and move with a connection to the chain side joint for drive motorization.
Synchronized with a pair of smooth rollers, an extruder, and a filling pump.

Chain Mold:

Specifically developed for batch laboratory testing;
Composed of upper and lower chain groups with die punches.

Gallery
